Electric hoists represent their own machinery, strength, and toughness, while the stage is elegant, flowing, and soft, with conflicts and collisions between the two.
With the development of social economy, there are more and more electric hoists on stage.

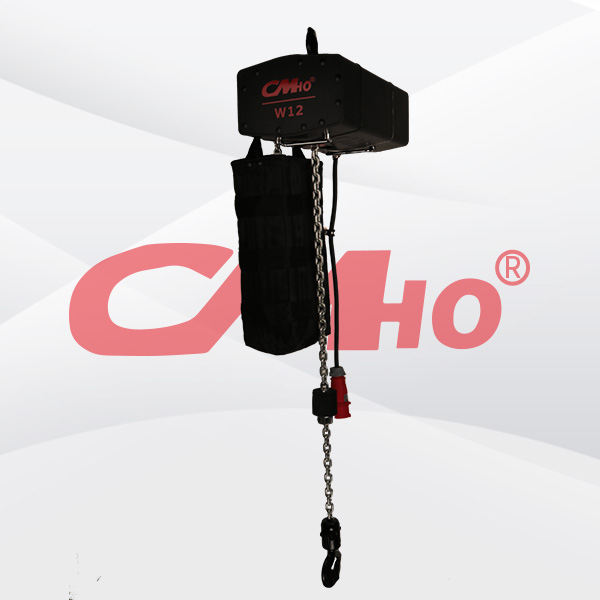

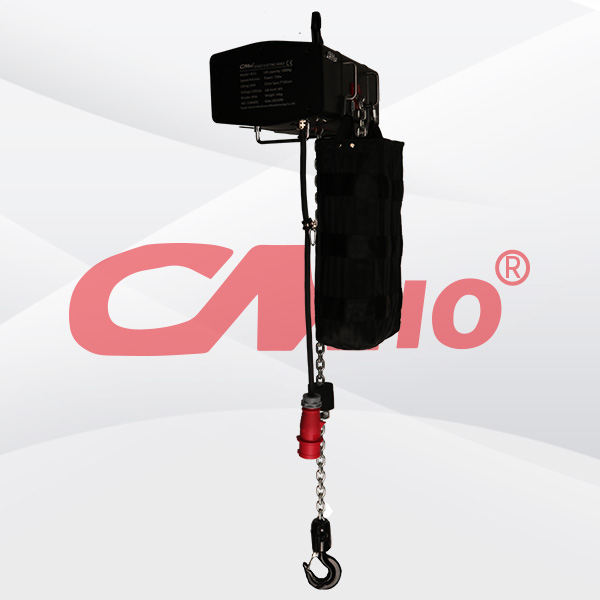

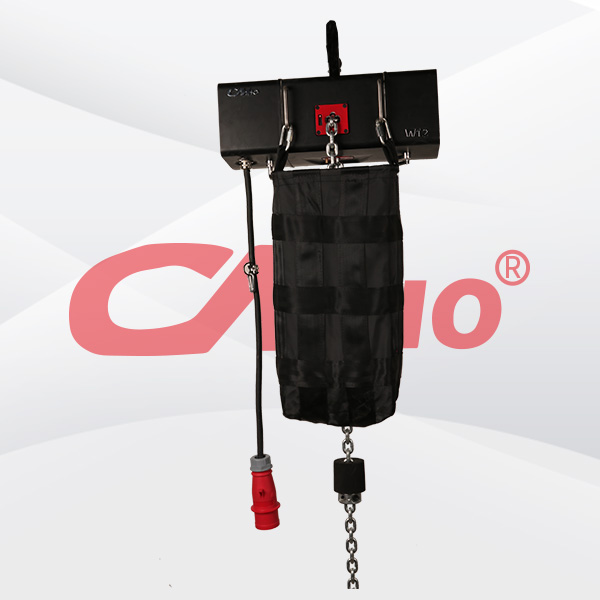

Category : W12 Stage Electric Hoist
Get a Quote
Product Details
With the development of social economy, there are more and more electric hoists on stage. So, what are the components of electric hoists on stage? Today, I will explain them to you.
1、 Hook component
Hook, cable board, frame, cross pin, cruise ship
2、 Body components
Cover: Cover, nut, gasket.
Hulu head: gear, three plates, lifting wheel, guide wheel, baffle (chain splitter), support rod.
Planetary reducer: box, planetary carrier, planetary gear, flat key, spring retaining ring.
Motor: motor, sun gear, flat key, retaining ring
3、 Chain
Using 80 level large Baotou chain
4、 Lower hook component
Hook, cable tray, cruise ship, lower frame
The group crane electric hoist is driven by an electric motor to drive planetary gears, which drive a five tooth long shaft through a planetary carrier. The five tooth long shaft drives a plate gear, a four tooth short shaft, and a spline hole gear. In this way, the lifting sprocket installed on the spline hole gear drives the lifting chain, allowing for smooth lifting of heavy objects. The group crane electric hoist is braked by a disc motor under load.
