Electric hoists represent their own machinery, strength, and toughness, while the stage is elegant, flowing, and soft, with conflicts and collisions between the two.
Hand chain hoist, also known as immortal gourd, chain hoist, inverted chain hoist, non falling weight hoist, or manual hoist, is a simple to use and convenient to carry manual lifting machinery, also
Category : Stage Chain Hoist Series
Get a QuoteProduct Details
Hand chain hoist, also known as immortal gourd, chain hoist, inverted chain hoist, non falling weight hoist, or manual hoist, is a simple to use and convenient to carry manual lifting machinery, also known as "chain hoist" or "inverted chain hoist". It is suitable for short distance lifting of small equipment and goods, with a lifting capacity generally not exceeding 10T and up to 20T for larger ones, and a lifting height generally not exceeding 6m. The shell material of the chain hoist is high-quality alloy steel, which is sturdy, wear-resistant, and has high safety performance. When lifting a heavy object with a chain hoist, pull the manual chain and handwheel clockwise to rotate. When lowering, pull the manual zipper counterclockwise to separate the brake seat from the brake pad. The ratchet is stationary under the action of the pawl, and the five tooth long shaft drives the lifting sprocket to run in the opposite direction, thus smoothly lifting and lowering the heavy object.

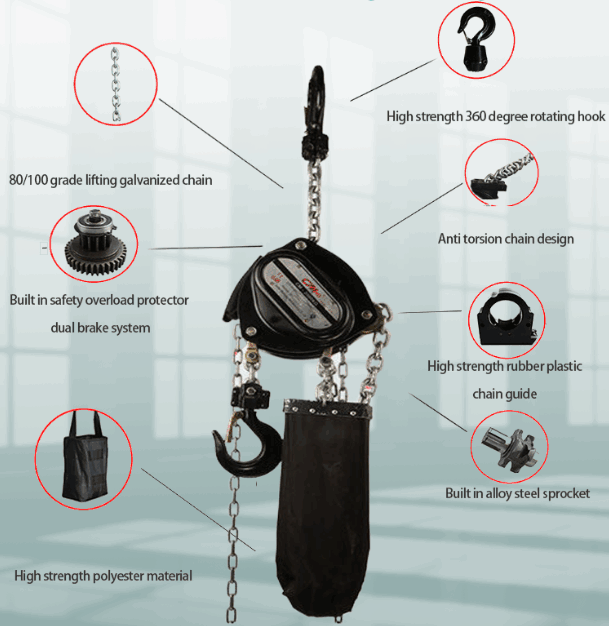

Advantages of stage chain hoist:
1. All components are made of high-quality materials, and additional plating and painting processes are used to enhance corrosion resistance.
2. The sturdy all metal shell can effectively protect the internal mechanism from damage even in harsh conditions.
3. The guide chain mechanism and gear transmission mechanism are both equipped with shell protection devices, which can protect these key components and adapt to different operating environments.
4. The lifting chain wheel is made of hardened materials and has undergone precision processing to ensure smooth and accurate movement of the chain.
5. The extremely low clearance size can maximize the utilization of space and increase the effective lifting distance.
6. The surface galvanized alloy steel lifting chain, perfectly matched with the hoist body, can ensure smooth and accurate operation.
7. The upper and lower hooks are made of anti-aging, high toughness alloy steel, which will deform first without sudden fracture in case of overload, ensuring user safety.
